the system.

The complete system without marketing fog: what we own, how it is configured and what we can actually deploy on site.

Dancefloor

Two stacks of Resolution 4E on F218: the full rig.

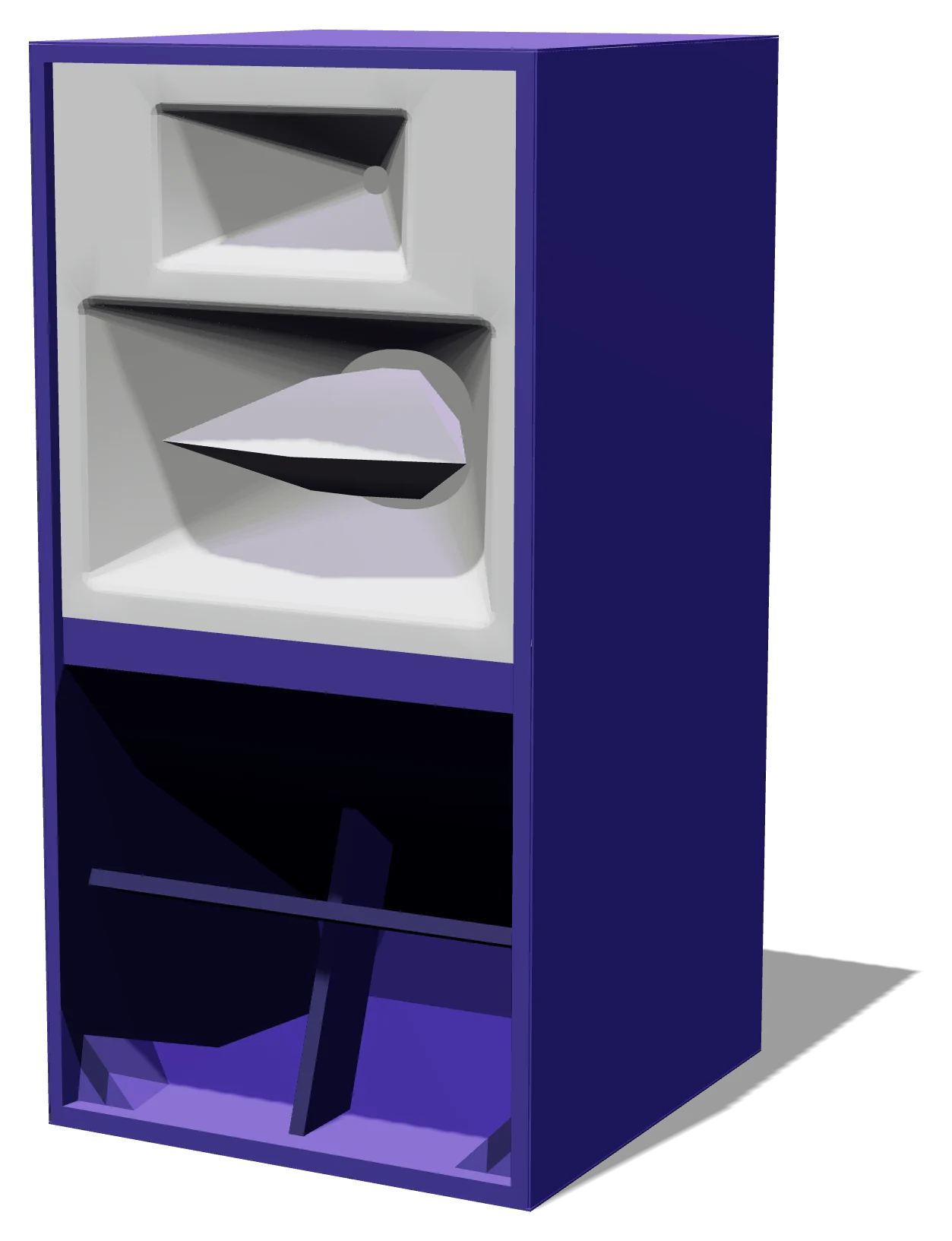

Funktion-One Resolution 4E, 3D render

2×

Funktion-One Resolution 4E

Main mid-high of the full rig: one on each F218, turned with the 12" section on top.

Type
3-way horn-loaded mid-high, bi-amped with passive HF
Drivers
12" · 8" · 1"
Crossover bands
114–445 Hz · 445 Hz–5.77 kHz · 5.55 kHz +
Frequency response
114 Hz – 18 kHz (±3 dB)
Sensitivity (1 m)
105 dB · 108 dB · 109 dB
Power handling (AES)
300 W + 200 W + 50 W
Impedance
8 Ω (12") · 12 Ω (8" + 1" passive)
Dispersion
50° × 25°

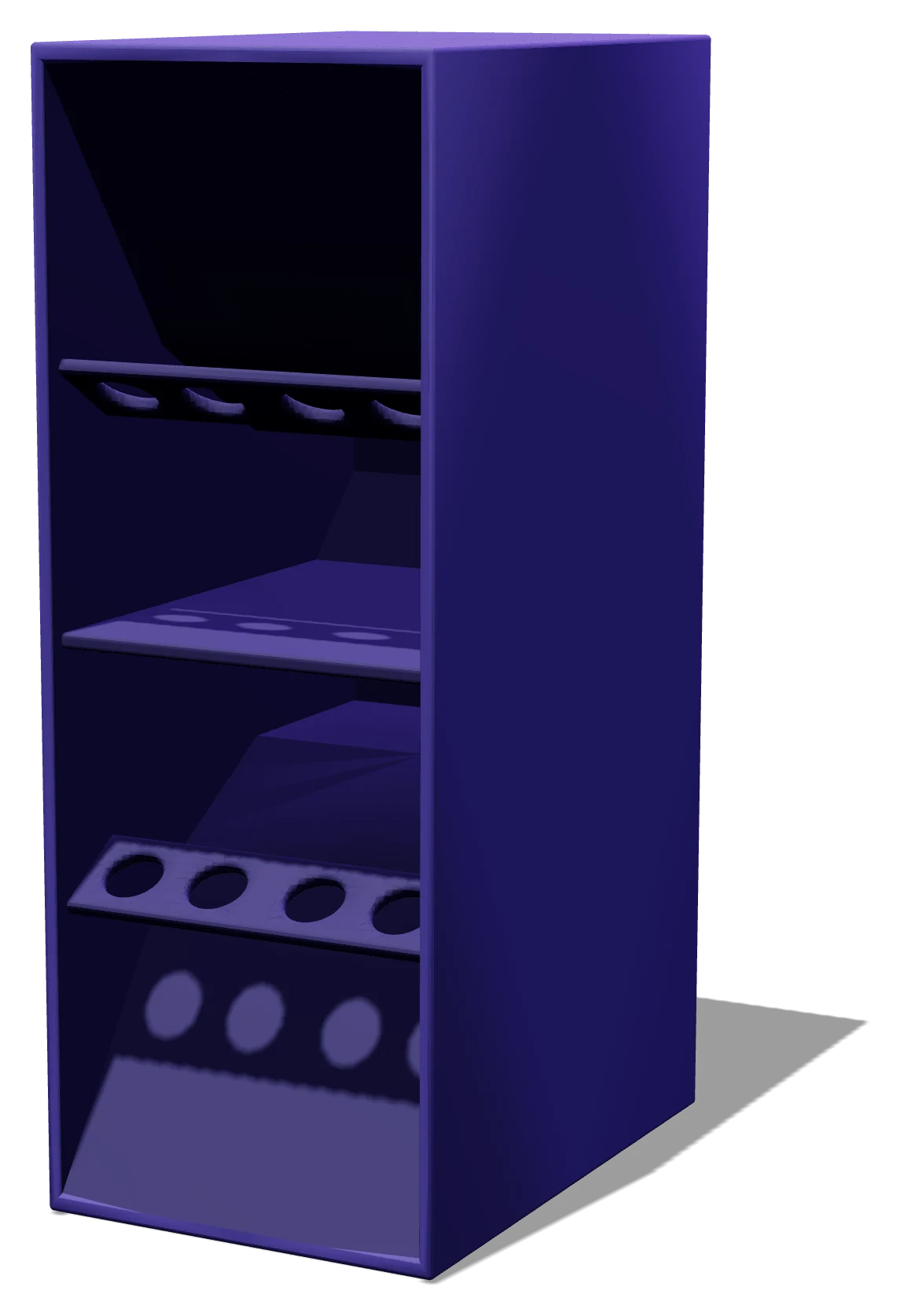

Funktion-One F218, 3D render

2×

Funktion-One F218

Bass of the full rig, under the Res 4E. In the medium rig one F218 lies on its side under the MB112A.

Type
Horn-loaded bass enclosure
Drivers
2 × 18"
Frequency response
50 – 200 Hz (−3 dB)
Sensitivity (1 m)
102 dB @ 2 V
Power handling (AES)
900 W (2 × 450 W)
Impedance
2 × 8 Ω (4 Ω in parallel)
Construction
18 mm birch ply
Connectors
2 × Neutrik NL4

Small rig and booth monitors

F55 tops and an MB112A bass. On their own they are the small rig, with an F218 the medium rig, next to the full rig the DJ monitors or a second zone.

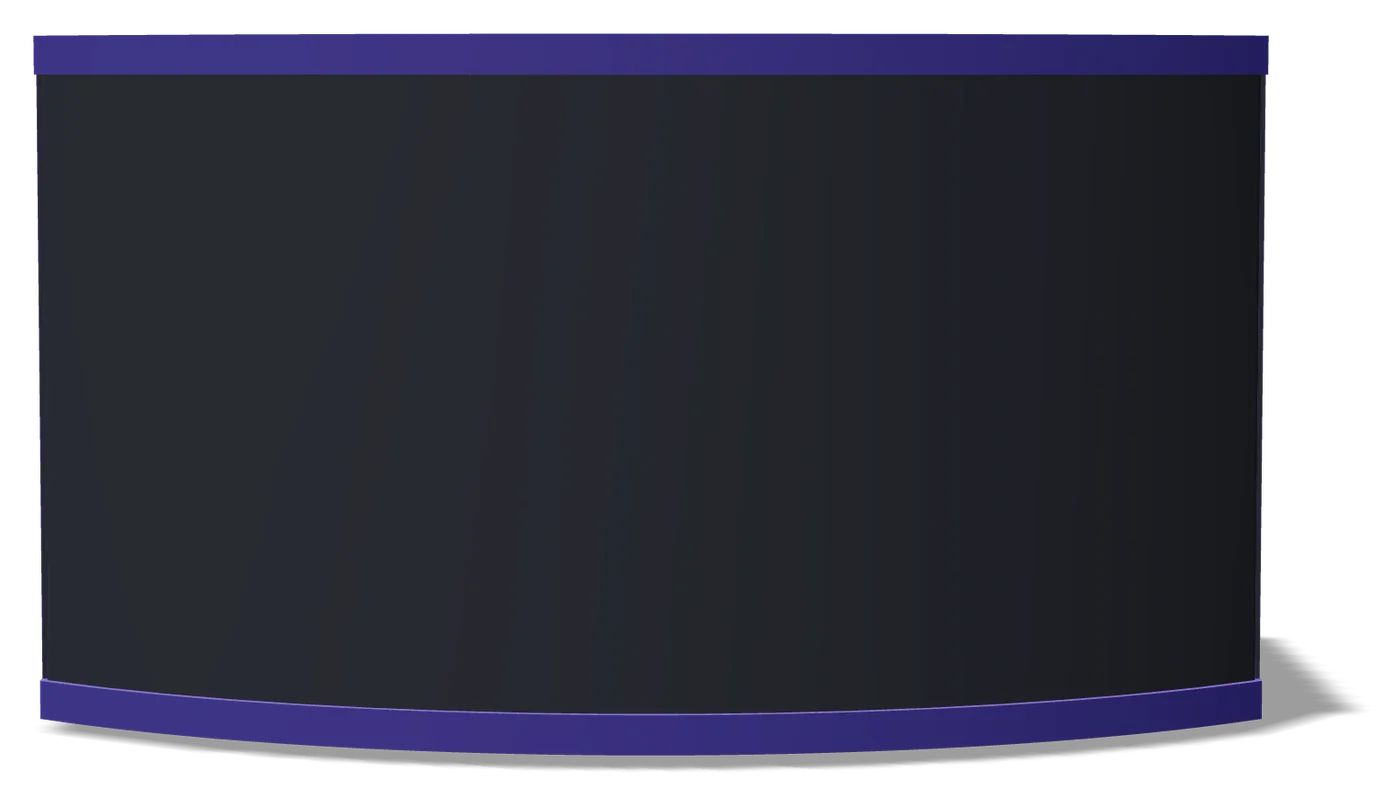

Funktion-One F55, 3D render

4×

Funktion-One F55

Tops of the small and medium rigs, DJ monitors in the full rig +. Used horizontally, two per stand.

Type
Compact one-way, wide dispersion, no compression driver
Drivers
2 × 5"
Frequency response
170 Hz – 16 kHz (±3 dB)
Sensitivity (1 m)
95 dB @ 2.8 V
Power handling (AES)
60 W
Impedance
8 Ω
Dispersion
90° × 45°
Weight
3.5 kg
Connectors
2 × Neutrik NL4

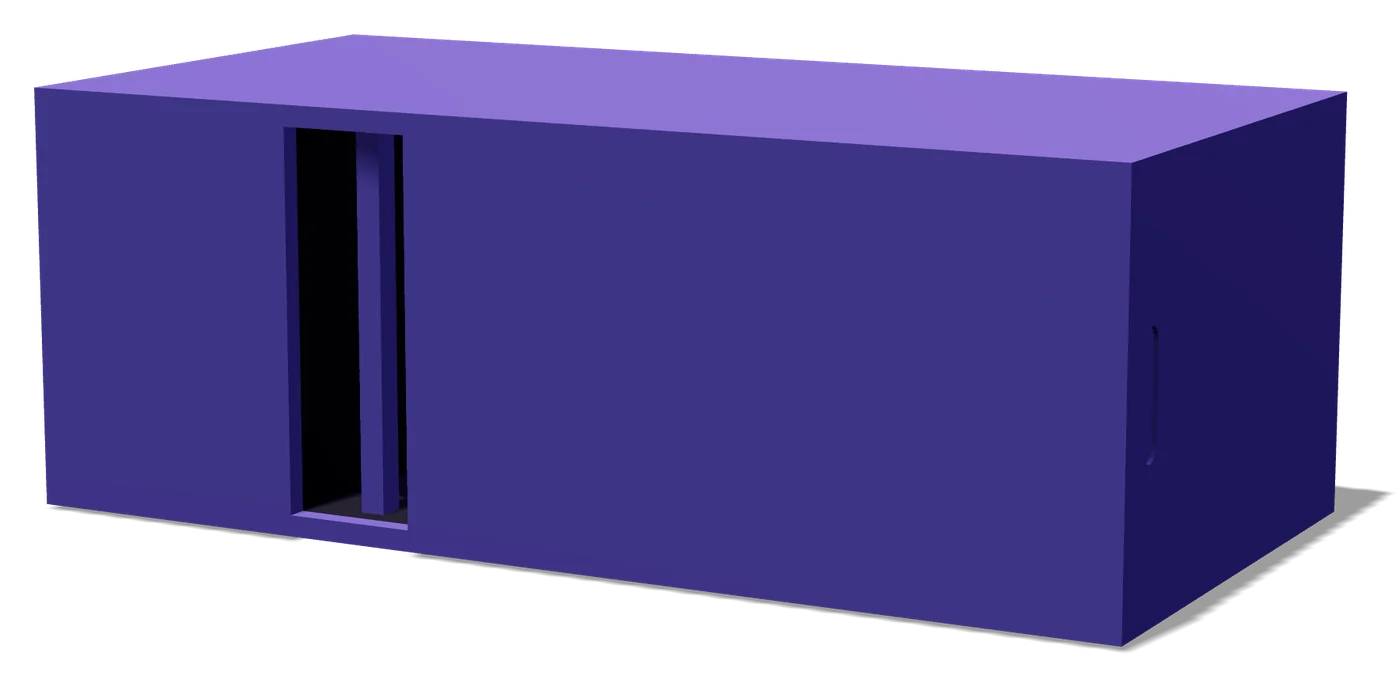

Funktion-One MB112A, 3D render

1×

Funktion-One MB112A

Bass under the F55: alone in the small rig, on top of an F218 in the medium rig.

Type
Compact ported bass, self-powered (amplifier, crossover, mono sum)
Drivers
1 × 12"
Frequency response
60 – 160 Hz (±3 dB)
Sensitivity (1 m)
104 dB @ 2.8 V
Power handling (AES)
250 W
Inputs
XLR left + right, summed to mono
Construction
15 mm birch ply
Weight
20.5 kg

Amplifiers and processing

Every rig travels with its own amplifiers and processor, set up and run by our technician.

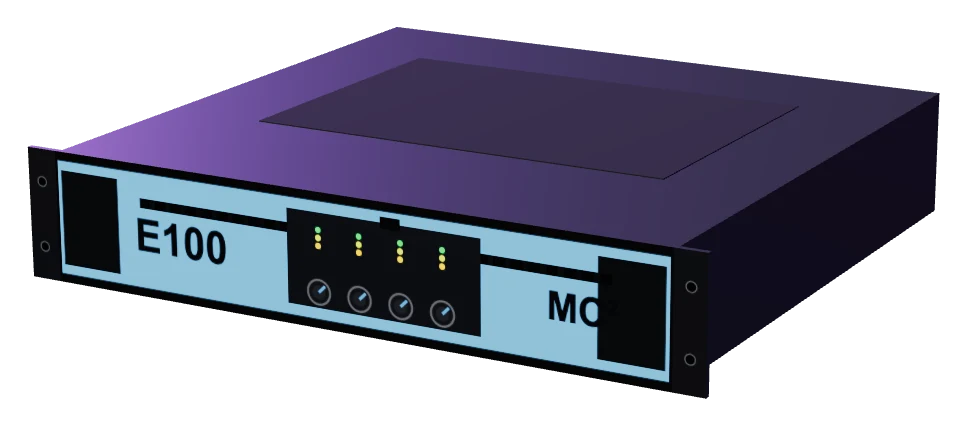

MC2 E100, 3D render

1×

MC2 E100

Full rig amplifier rack.

Type
4-channel class D touring amplifier, 2U
Power at 8 Ω
4 × 1400 W
Power at 4 Ω
4 × 2800 W
Power at 2 Ω
4 × 3700 W
Bridged
2 × 7400 W @ 4 Ω
Gain
26 / 32 / 36 dB
Frequency response
20 Hz – 20 kHz (+0 / −0.5 dB)
Weight
11.8 kg

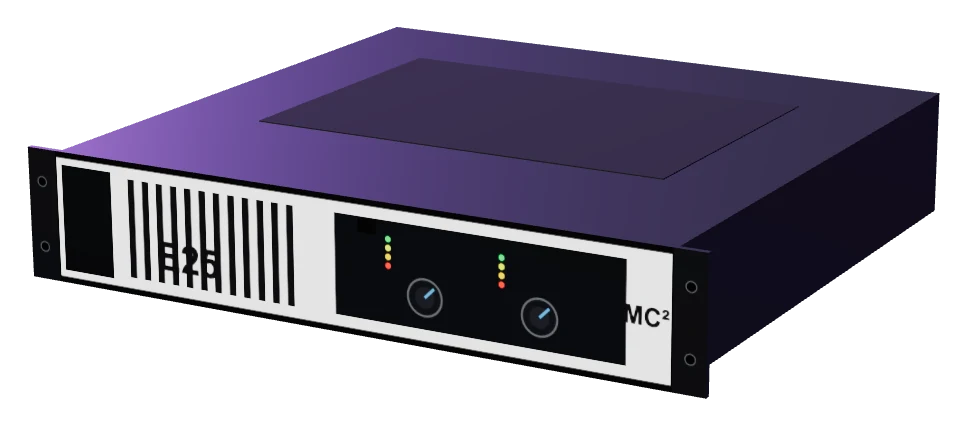

MC2 E25, 3D render

1×

MC2 E25

Full rig rack; drives the F218 in the medium rig.

Type
2-channel lightweight touring amplifier, switch-mode, 2U
Power at 8 Ω
2 × 700 W
Power at 4 Ω
2 × 1350 W
Power at 2 Ω
2 × 2400 W
Bridged
4800 W @ 4 Ω
Gain
26 / 32 / 33 dB
Frequency response
20 Hz – 20 kHz (±0.3 dB)

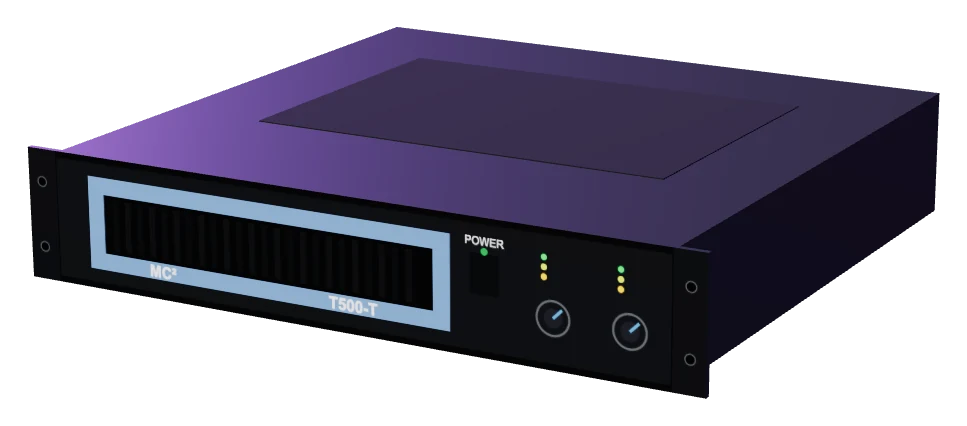

MC2 T500, 3D render

1×

MC2 T500

Full rig amplifier rack.

Type
2-channel class AB amplifier, 2U
Power at 8 Ω
2 × 215 W
Power at 4 Ω
2 × 375 W
Bridged
750 W @ 8 Ω
Gain
32 dB
Frequency response
20 Hz – 20 kHz (+0 / −0.5 dB)
Weight
12.6 kg

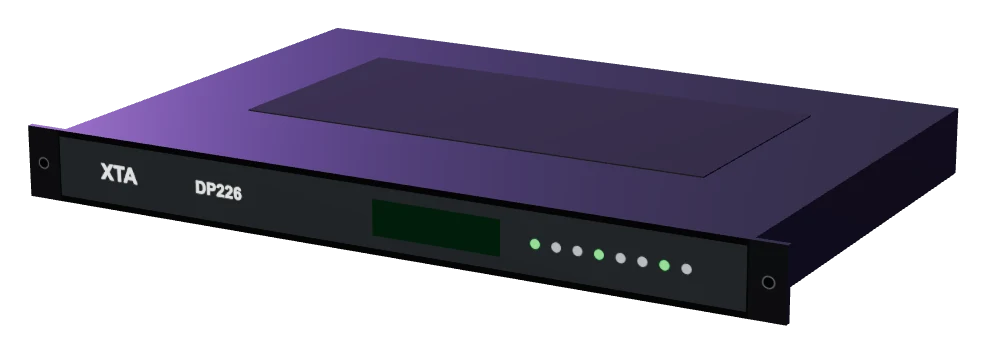

XTA DP226, 3D render

1×

XTA DP226

Crossover, EQ, delay and limiting for the medium and full rigs.

Type
Digital loudspeaker management, 1U
Inputs
2 balanced
Outputs
6 balanced
Crossover modes
3 × 2-way · 2 × 3-way · 4 · 5 · 6-way
EQ
8 parametric bands per input, 5 per output + shelving
Filters
Butterworth · Bessel · Linkwitz-Riley, 12 / 18 / 24 dB/oct
Delay
Up to 650 ms per output
Limiter
On every output
Dynamic range
> 110 dB
Weight
3.5 kg

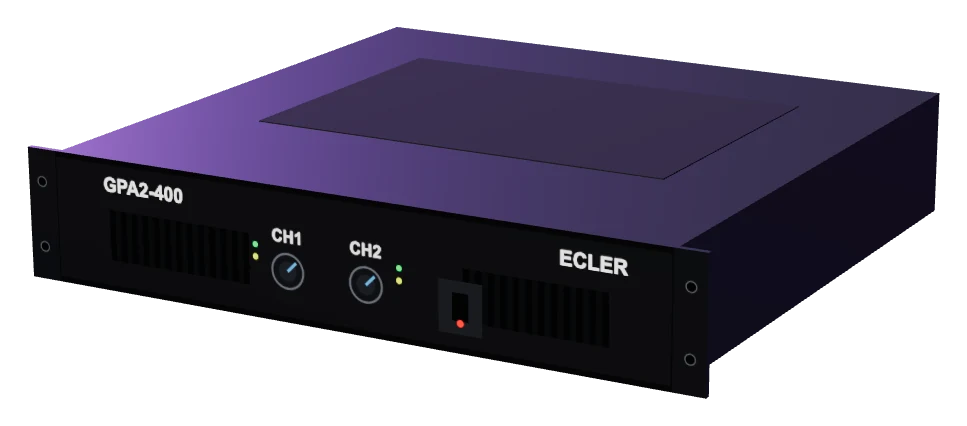

Ecler GPA2-400, 3D render

1×

Ecler GPA2-400

Drives the four F55 in the small and medium rigs and on the monitors.

Type
Stereo high-efficiency amplifier, convection-cooled (no fan), 2U
Power at 8 Ω
225 W per channel
Power at 4 Ω
2 × 322 W both channels driven · 390 W one channel
Minimum load
2.67 Ω per channel (three 8 Ω cabinets), 506 W
Bridged
650 W @ 8 Ω
Frequency response
20 Hz – 55 kHz
Inputs
2 × balanced XLR + Euroblock
Outputs
Speakon · Euroblock
Dimensions
482.6 × 88 × 373 mm
Weight
10.8 kg

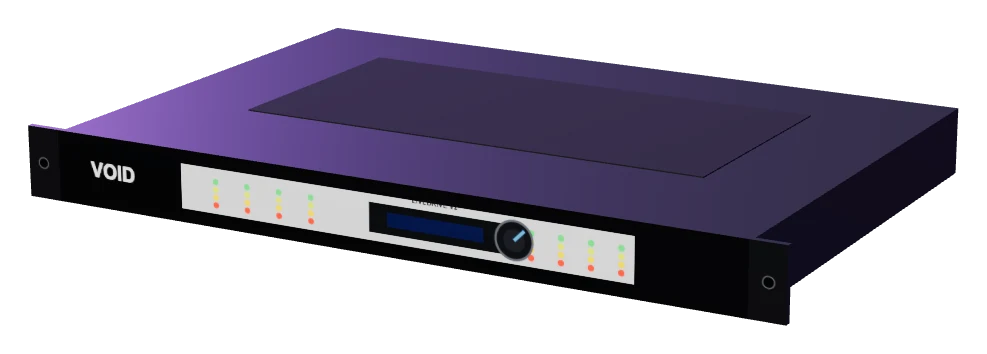

Void Acoustics Livedrive V2, 3D render

1×

Void Acoustics Livedrive V2

Crossover, EQ, delay and limiting for the small rig and for the DJ monitors / second zone of the full rig +.

Type
Digital loudspeaker management with matrix mixing
Inputs
4 balanced analogue + 1 AES/EBU (2 ch), up to +22 dBu
Outputs
8 balanced, up to +12 dBu
Converters
24-bit A/D and D/A, 64-bit DSP
Frequency response
20 Hz – 30 kHz
Dynamic range
118 dB inputs · 114 dB outputs
EQ
10 parametric bands per input and output
Filters
Butterworth · Bessel · Linkwitz-Riley, 6 / 12 / 18 / 24 dB/oct
Limiter
On every output
Control
Front panel, or USB / Ethernet with Live Link software; 100 presets

DJ equipment

Two complete setups. Add one or both to any rig, or book them without sound.

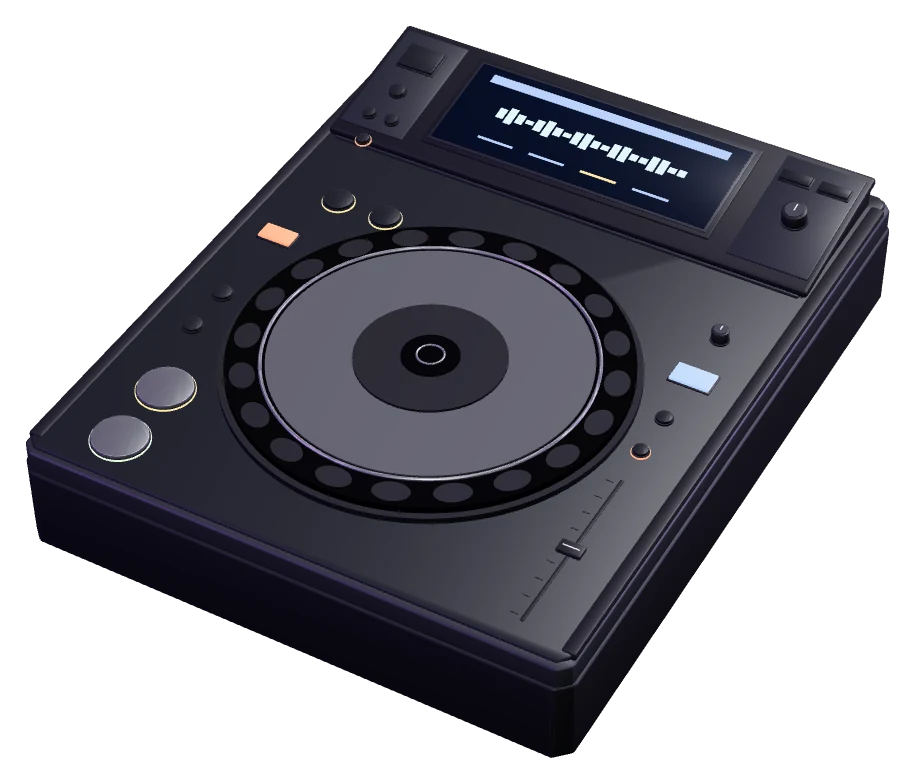

Pioneer XDJ-1000MK2, 3D render

2×

Pioneer XDJ-1000MK2

Pair for the XDJ + Xone setup.

Type
USB multi-player, club (CDJ) layout
Media
USB drive (FAT, FAT32, HFS+), phone with rekordbox, laptop over USB
Files
MP3 · AAC · WAV · AIFF · FLAC · ALAC (24-bit / 48 kHz)
Display
7" colour touch screen
Jog wheel
206 mm, CDJ / vinyl mode
Performance
8 hot cues · beat jump · loop move · quantize · slip · master tempo
Link
Pro DJ Link (LAN)
Outputs
RCA analogue + coaxial digital
Good to know
No CD drive and no SD slot: bring USB
Weight
3.7 kg

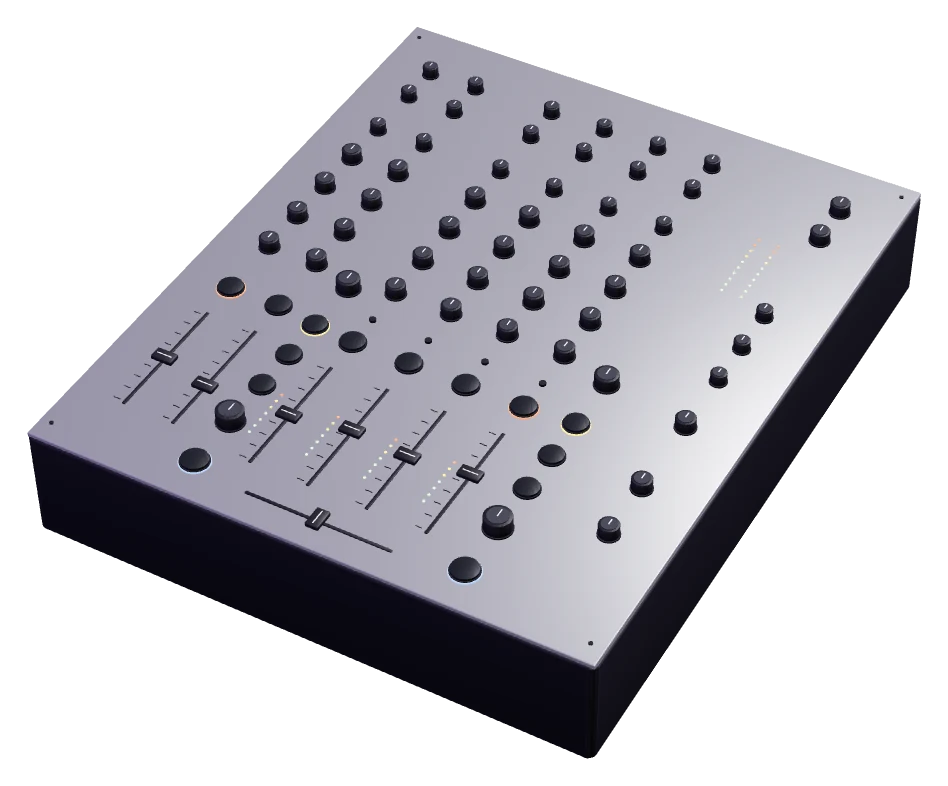

Allen & Heath Xone:96, 3D render

1×

Allen & Heath Xone:96

Mixer of the XDJ + Xone setup.

Type
Analogue club mixer, 6 + 2 channels
EQ
4-band on channels 1–4, 3-band parametric on A–B
Filters
Two Xone VCF filters: HPF / BPF / LPF with resonance and Crunch
USB audio
Two independent soundcards, 2 × 24 ch, 32-bit / 96 kHz
Inputs
4 × phono / line RCA, 4 × line jack, 2 × mic XLR
Effects
2 sends, 4 stereo returns
Cue
Two independent cue systems for back-to-back
Faders
60 mm VCA, innoFADER crossfader
Outputs
Master XLR, booth with 3-band EQ
Weight
7 kg

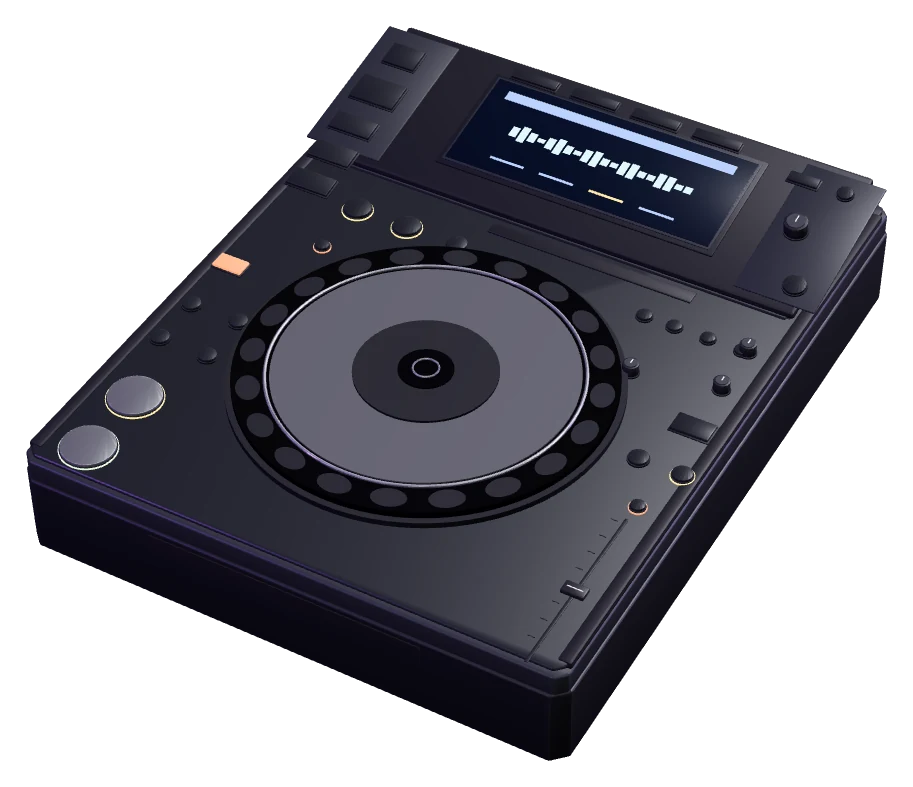

Pioneer CDJ-2000, 3D render

2×

Pioneer CDJ-2000

Pair for the CDJ + DJM setup.

Type
Multi-player with disc drive
Media
CD · CD-R/RW · DVD±R · USB · SD / SDHC
Files
MP3 · AAC · WAV · AIFF
Display
6.1" colour screen
Jog wheel
206 mm, CDJ / vinyl mode, needle search
Link
Pro DJ Link (LAN) · rekordbox
Outputs
RCA analogue + coaxial digital
Good to know
No FLAC or ALAC: bring WAV, AIFF or MP3

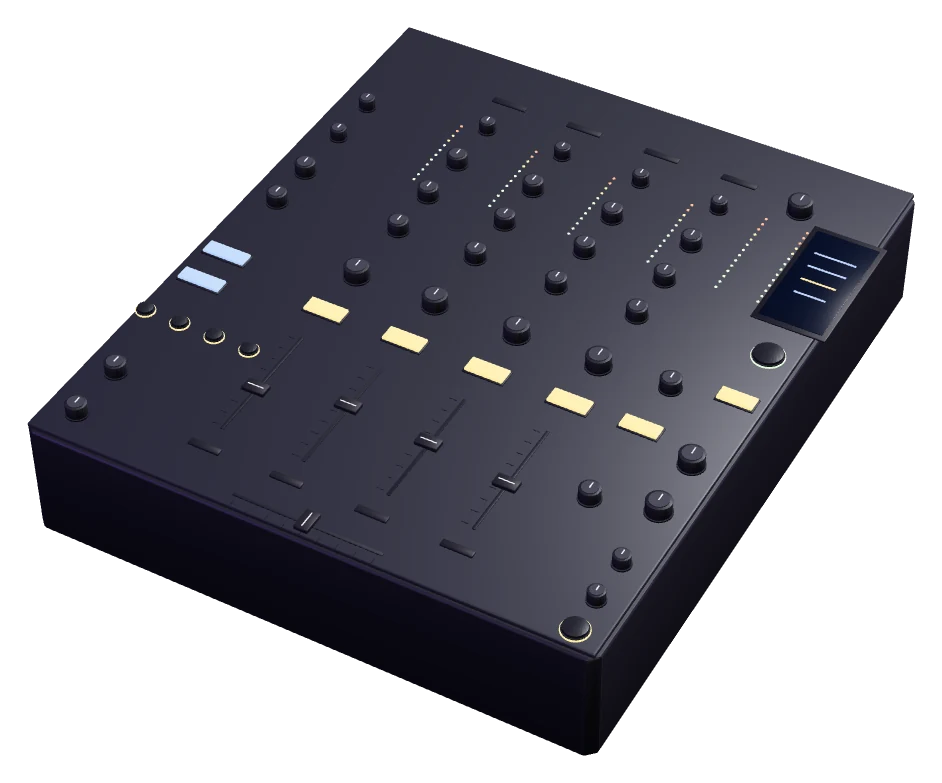

Pioneer DJM-800, 3D render

1×

Pioneer DJM-800

Mixer of the CDJ + DJM setup.

Type
4-channel digital club mixer
Converters
24-bit / 96 kHz, 32-bit processing
EQ
3-band per channel, −26 to +6 dB
Effects
13 beat effects + 4 Sound Colour FX
Inputs
3 phono, 5 line, 4 coaxial digital, 2 mic
Outputs
Master XLR + RCA + digital, booth, record
Dimensions
320 × 381 × 108 mm
Weight
7.5 kg

Set recording kit

Three cameras and a recorder that takes the mix straight from the desk.

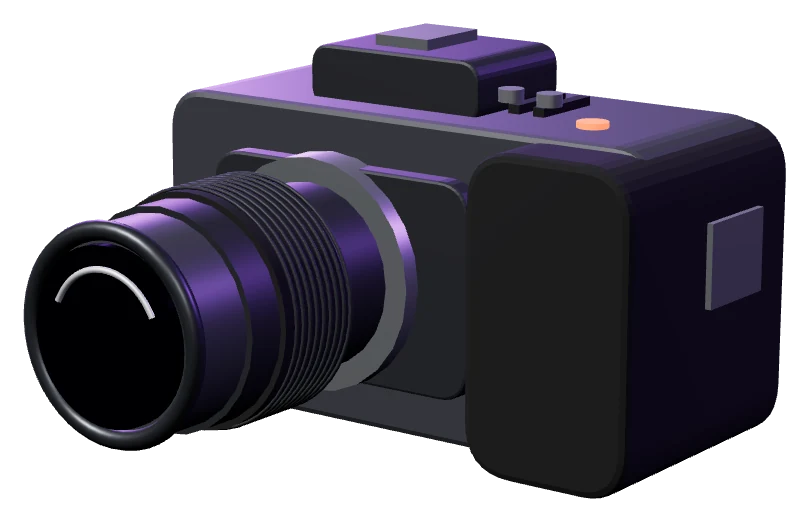

Blackmagic Pocket Cinema Camera 4K, 3D render

1×

Blackmagic Pocket Cinema Camera 4K

Front camera on a tripod, facing the DJ.

Type
Cinema camera, 4K DCI
Sensor
Four Thirds, 4096 × 2160, 13 stops of dynamic range
ISO
Dual native ISO 400 / 3200: clean picture in a dark club
Video
Blackmagic RAW and Apple ProRes, 4K DCI up to 60 fps
Lens mount
Active Micro Four Thirds
Media
CFast 2.0, SD UHS-II or an external SSD over USB-C
Audio in
Mini XLR with +48 V phantom, 3.5 mm stereo
Display
5" Full HD touch screen
Weight
722 g body

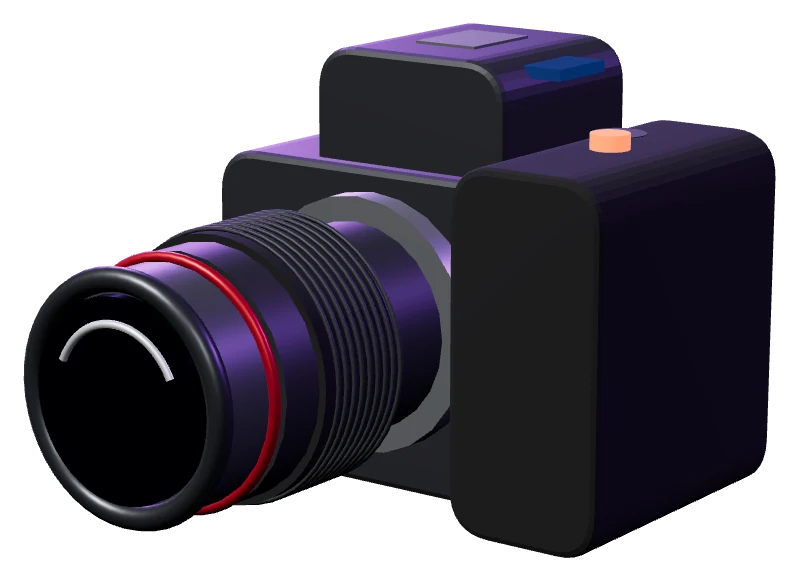

Canon EOS R10, 3D render

1×

Canon EOS R10

On a tripod behind the DJ: over the shoulder, towards the decks and the room.

Type
Mirrorless camera
Sensor
24.2 MP APS-C CMOS
Video
4K up to 60p, 4K 30p oversampled from 6K, Full HD up to 120p
Autofocus
Dual Pixel CMOS AF II

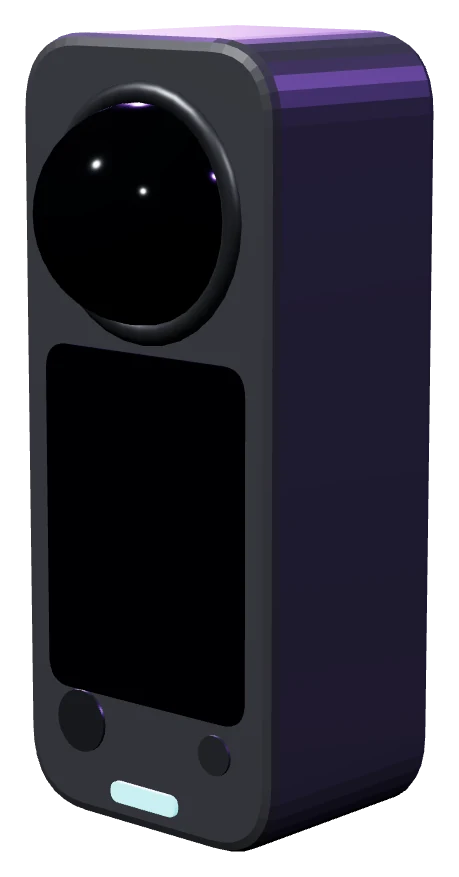

Insta360 X3, 3D render

1×

Insta360 X3

On a table tripod at the booth: the whole booth and the room in one wide shot.

Type
360° camera, two 1/2" sensors
Video
5.7K 360° at 30 fps, 4K single-lens
72 MP 360°
Stabilisation
FlowState · horizon lock
Weight
180 g

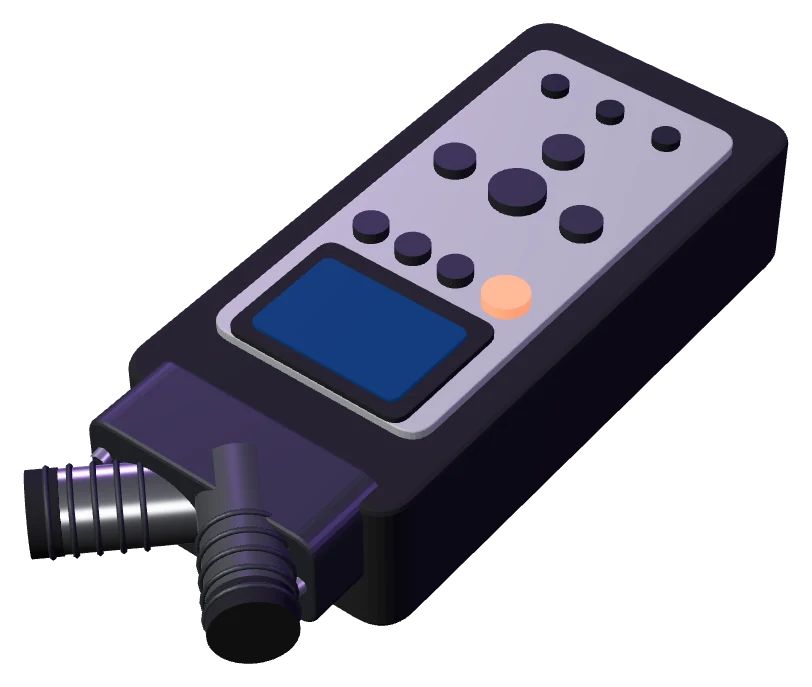

Zoom H4n Pro, 3D render

1×

Zoom H4n Pro

Takes the stereo record out of the mixer: the whole set as a clean audio file.

Type
Handheld 4-track recorder
Inputs
2 × locking XLR / TRS combo with +24 / +48 V phantom, 3.5 mm mic/line
Files
WAV (BWF) 16 / 24-bit at 44.1 / 48 / 96 kHz · MP3
Converters
24-bit A/D, 128× oversampling
Built-in mics
X/Y stereo pair, 90° or 120°, up to 140 dB SPL
Media
SD / SDHC card up to 32 GB
Weight
294 g

Not sure which part of the system you need?

Send the date, the room and roughly how many people. We will suggest the smallest rig that does the job and confirm the price before anything is booked.
